Project's context and challenges

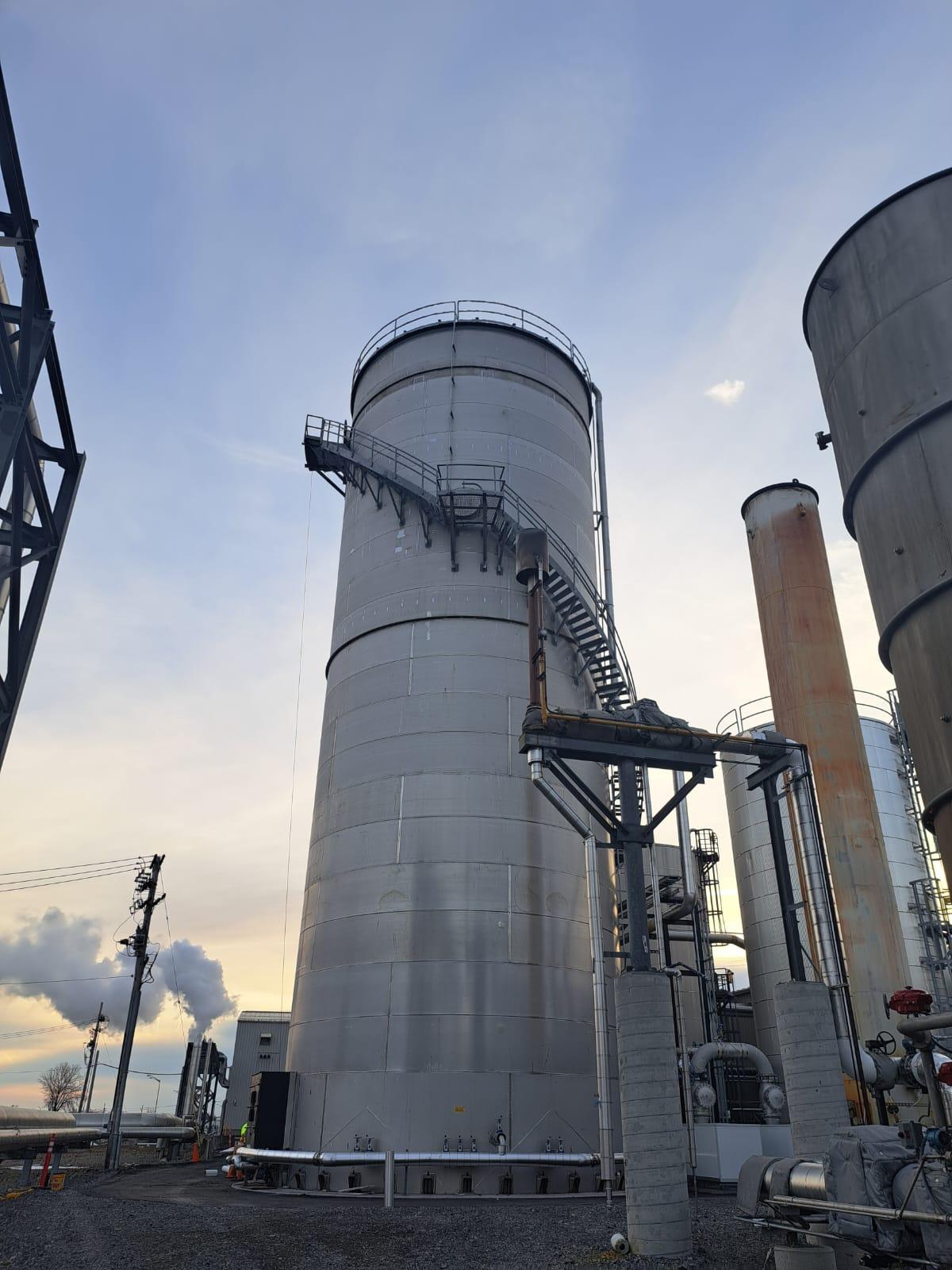

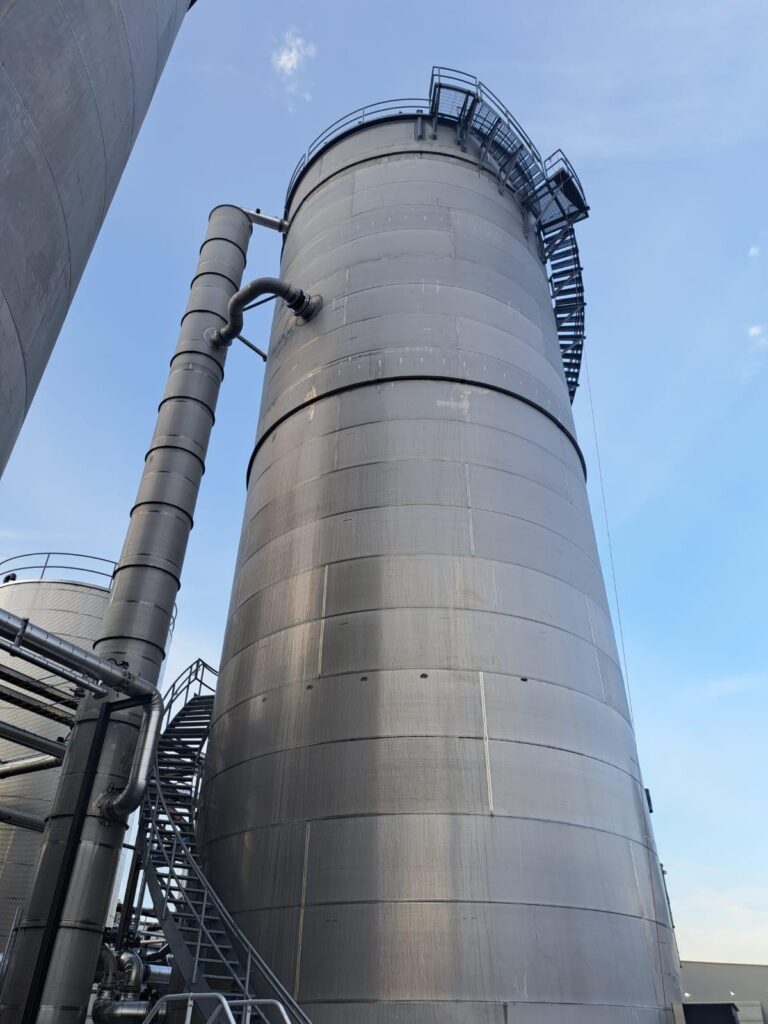

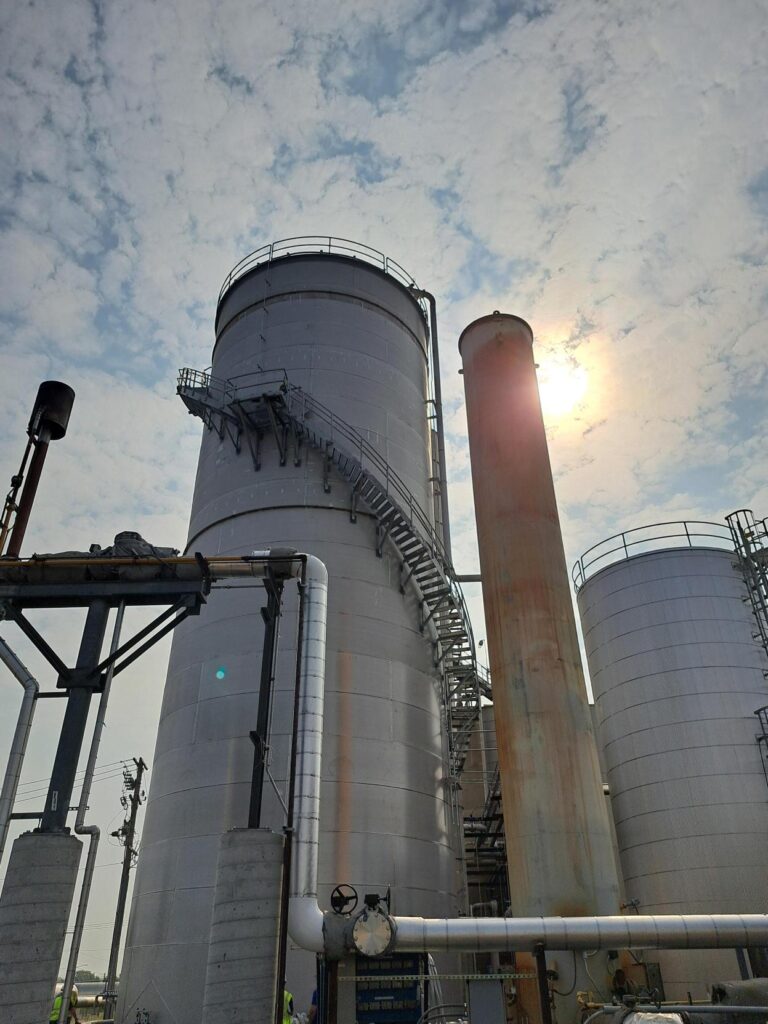

Econvert-IR for paper mill in New York state

The paper mill produces a range of containerboard liners and flutings for the sustainable manufacturing of corrugated board and packaging. As part of a site-wide modernization effort, the existing anaerobic reactor, which was underperforming, was replaced with an Econvert-IRC® reactor. The upgrade significantly improves treatment performance while maximizing biogas production for energy re-use. To clean the produced biogas for use in the mill’s boilers, the Econvert-Dsulph® was implemented for biological desulphurization.

Key figures

45 ton COD/day

Econvert-IRC®

>400 kg S/day

Econvert-Dsulph®

Customer benefits

Econvert-IRC® designed to handle recycle paper mill effluent at high volumetric loading rates

Compact installation which requires small footprint

Reactor can cope with high calcium loads

Reactor is completely gas-tight. No odor nuisance

Low energy consumption due to internal recirculation

Produce up to 700 m3 biogas per day

>99% H2S removal efficiency of Econvert-Dsulph®

Solution

Econvert delivered a high rate Econvert-IR® reactor to replace the existing anaerobic installation. The installation has been designed to treat up to 45 tons of COD per day. The upgrade significantly improves treatment performance at the paper mill while maximizing biogas production for energy re-use. In addition to this, an Econvert-Dsulph® was installed to reduce H2S levels to below 100 ppm in order to utilize the biogas in the mill’s boilers.

Econvert-IR for paper mill in New York state

Scope of supply

  • Design and engineering of Econvert-IRC® and Econvert-Dsulph®
  • Supply of all equipment, internals and tanks
  • Installation, commissioning & project management
  • Start-up and training operators
  • Operational support (Services)

Applied solutions

  • Econvert-IRC®09528
  • Econvert-Dsulph®
